Monogram Rangetop Uneven or Yellow Flame

An uneven or yellow flame on a Monogram rangetop can be a cleaning or seating issue, such as a cap that is not level or ports that are clogged. Turn the burner off, let it cool, and reseat the head and cap. A flame that stays yellow, or any gas odor or soot, is a stop-and-book situation.

Symptoms that look simple can come from several different systems. The goal of this guide is to narrow the next step safely and preserve the information a technician needs if external checks do not resolve it.

Start With the Exact Model

Find the full Monogram model number before using a troubleshooting article as a repair decision. Similar-looking appliances can use different sensors, boards, valves, fan systems, heating systems, or diagnostic logic.

Write down:

1. the complete model number and suffix;
2. when the symptom first appeared;
3. whether the problem is constant or intermittent;
4. any error code, alert, unusual sound, smell, leak location, or temperature reading;
5. whether the issue followed cleaning, a power interruption, plumbing work, installation changes, or heavy use.

Repeated resets can make intermittent problems harder to diagnose, so preserve the evidence first.

What can an uneven rangetop flame mean?

On a Monogram gas rangetop, the visible symptom can involve more than one system. Depending on the exact model, diagnosis may need to separate spark ignition, burner heads and ports, valves and switches, gas supply/regulation, griddle system where equipped, electrical supply for ignition.

The important point is sequence: confirm the operating condition, rule out safe external causes, then test the system that remains. Parts should follow evidence, not the other way around.

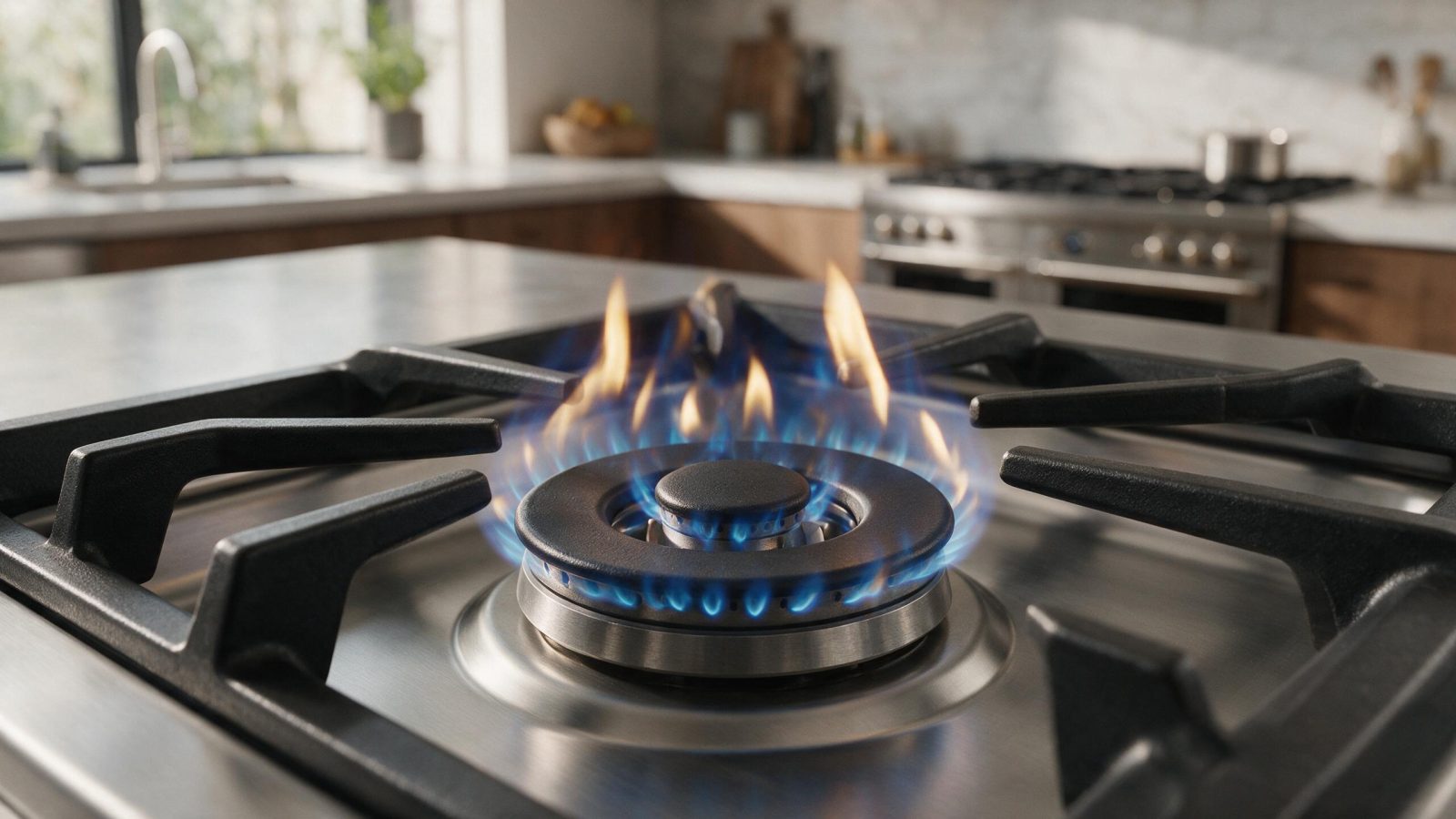

What does flame color tell you about a rangetop?

The manual for one Monogram rangetop lists very large or yellow flames as an improper air-to-gas ratio, and says that on propane you should contact the installer or converter. After reassembly the flame should be blue. If it is yellow or uneven, turn the burner off, let it cool and reseat the head and caps.

Safe Checks You Can Make

Owner checks should stay external and reversible. For this appliance category, useful checks can include:

• Let burner parts dry after cleaning.
• Reseat removable burner caps correctly.
• Keep ports and electrodes free of loose debris without enlarging openings.
• Compare the affected burner with another burner only when there is no gas odor.

If one of these checks clearly corrects the condition and the appliance returns to stable operation, continue to monitor it. If the symptom returns, record what changed rather than repeating resets indefinitely.

What Not to Do

Do not remove cabinetry, open energized electrical panels, bypass door or temperature safety devices, work on a sealed refrigeration circuit, adjust internal gas regulation, or open microwave high-voltage sections as a DIY troubleshooting step.

A built-in appliance may also be physically difficult to move safely. Pulling it from cabinetry can damage flooring, panels, water lines, gas connections, anti-tip hardware, or the appliance itself.

When the Symptom Points Beyond a Simple Check

A repeatable problem after the external checks usually means the appliance needs model-specific testing. At that point a technician may compare the symptom with sensor readings, control inputs/outputs, power supply, wiring/connectors, airflow or water behavior, ignition/heating performance, and the relevant mechanical system.

Related Symptoms Worth Recording

Other observations can help narrow the same repair path:

• burner clicks but will not light
• clicking continues after ignition
• flame is uneven
• flame is yellow or orange

Error Codes and Alerts

If the appliance shows a code, save the exact characters and appliance context. The same short code can mean different things on different product categories, and a code usually identifies a detected condition rather than proving which component failed.

Use the dedicated Monogram error-code library for exact code intent.

Built-In Installation Can Change the Diagnosis

Monogram appliances are commonly integrated into cabinetry, islands, or custom panels. Installation details can affect ventilation, door alignment, drain routing, service access, and how safely the appliance can be removed.

When booking, mention panel-ready fronts, flush installation, floor transitions, narrow clearances, gates, elevators, or parking limitations. Do not dismantle cabinets just to make the appliance visible.

How does cleaning affect the rangetop flame?

Wash burner heads by hand, never in a dishwasher, since it can discolor them, and avoid steel wool. Keep ports clean and the ceramic igniter dry. A griddle on the same rangetop is a separate system, using a Glo-Bar and igniting roughly 45 seconds after the knob is set, so its behavior should not be compared with a surface burner.

When to Stop Troubleshooting

Stop immediately for gas odor, soot, delayed ignition, flames outside the burner pattern, or any condition that suggests unsafe combustion.

Safety concerns take priority over completing a checklist. If the appliance has a dangerous symptom, keep it out of normal use until the appropriate repair path is established.

What to Tell the Technician

A concise service request is more useful than a long guess about parts. Include:

• exact model number;
• the symptom: uneven flame;
• any display code or alert;
• how long the problem has been happening;
• what safe checks you already completed;
• whether the symptom is constant or intermittent;
• service ZIP and built-in access notes.

That information helps the visit begin with the correct appliance platform.

Need Help With Uneven Flame?

If the problem remains after safe external checks, request model-aware diagnosis. Send the exact model, symptom, any code, and installation details instead of ordering a part from the symptom alone.
